Home » FLUKE 773 MILLIAMP PROCESS CLAMP METER
FLUKE

FLUKE 773 MILLIAMP PROCESS CLAMP METER

Out of stock
SKU: FLUKE 773
4,500.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

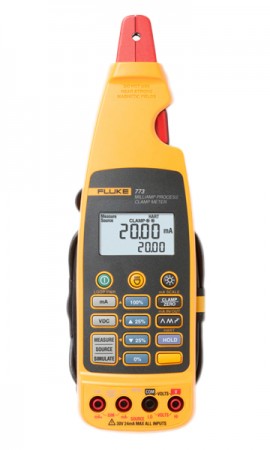

The FLUKE 773 Milliamp Process Clamp Meter is a highly accurate and versatile tool designed for measuring and troubleshooting 4 to 20 mA signals in process control applications. It allows users to measure output signals without interrupting the system, making it ideal for use in live environments.

Features
  • Non-Contact Measurement: Measures 4 to 20 mA signals without breaking the loop, allowing for real-time troubleshooting.
  • Source/Simulate Signals: Capable of sourcing and simulating 4 to 20 mA signals and providing loop power.
  • DC Voltage Measurement: Sources and measures DC voltage to verify power supplies or I/O signals.
  • High Accuracy: Offers best-in-class accuracy of 0.2% and a resolution of 0.01 mA.
  • Dual Backlit Display: Displays mA measurement and percentage of 4 to 20 mA span simultaneously.
  • Integrated Measurement Spotlight: Illuminates hard-to-see wires in dark enclosures.
  • Detachable Clamp: The clamp can be detached and used as a remote jaw for measurements in tight spaces.
Specifications
Specification Details
Diameter of Measurable Conductor 0.177" (4.5 mm) max
Operating Temperature -10 to 50ºC
Storage Temperature -25 to 60ºC
Operating Humidity < 90% @ <30ºC, < 75% @ 30 to 55ºC
Operating Altitude 0 to 2000 m
IP Rating IP 40
Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight 410 g (14.4 oz)
Vibration Random 2 g, 5 to 500 Hz
Shock 1 meter drop test (except the jaw)
Power, Battery Life (4) AA 1.5 V Alkaline, 12 hours in mA source into 500 ohms
Warranty Three years for electronics, one year for cable and clamp assembly
