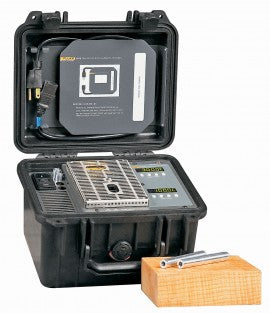

Fluke 9009-B-156 Dual Range Dry-Block Calibrator

Out of stock
SKU: 9009-B-156
Regular price 45,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The Fluke 9009-B-156 is a dual-range dry-block calibrator designed for precise temperature calibration in industrial environments. It allows users to perform simultaneous calibrations at both hot and cold temperatures, enhancing efficiency and accuracy in temperature measurement tasks.

Features
  • Dual Temperature Blocks: Independently controlled hot and cold blocks for simultaneous calibration.
  • Wide Temperature Range:
    • Hot block: 122 to 662°F (50 to 350°C)
    • Cold block: 5 to 230°F (–15 to 110°C)
  • High Accuracy:
    • Hot block: ±0.6°C
    • Cold block: ±0.2°C
  • Stability:
    • Hot block: 0.1°C from 122 to 212°F (50 to 100°C), 0.05°C above 212°F (100°C)
    • Cold block: 0.05°C
  • Well-to-Well Uniformity: ±0.1°C
  • Display Resolution: 0.1°
  • Heating and Cooling Times:
    • Hot block: 30 minutes from 77 to 662°F (25 to 350°C)
    • Cold block: 15 minutes from 77 to 230°F (25 to 110°C)
  • Durable Design: Housed in a rugged Pelican case for portability and protection.
Specifications
Specification Details
Hot Block Range 122 to 662°F (50 to 350°C)
Cold Block Range 5 to 230°F (–15 to 110°C)
Accuracy (Hot Block) ±0.6°C
Accuracy (Cold Block) ±0.2°C
Stability (Hot Block) 0.1°C (50 to 100°C), 0.05°C (>100°C)
Stability (Cold Block) 0.05°C
Well-to-Well Uniformity ±0.1°C
Display Resolution 0.1°
Heating Time 30 minutes (Hot Block)
Cooling Time 15 minutes (Cold Block)
Dimensions 7 x 10.5 x 9.75 inches (178 x 267 x 248 mm)
Weight 10 lbs (4.5 kg)
Power Supply 115 VAC (±10%), 50/60 Hz, 3 A, 250 W
