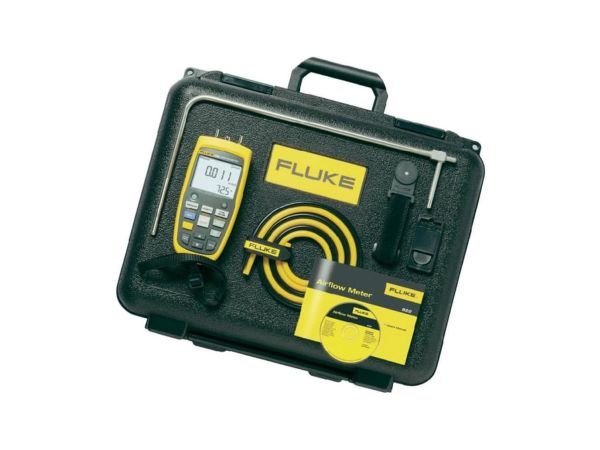

Fluke 922/KIT Differential Manometer Kit
Regular price
4,990.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

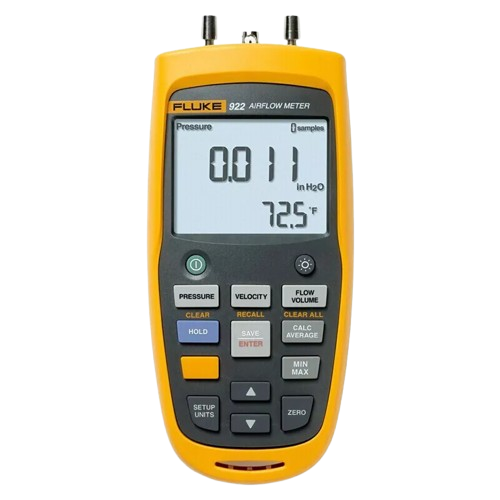

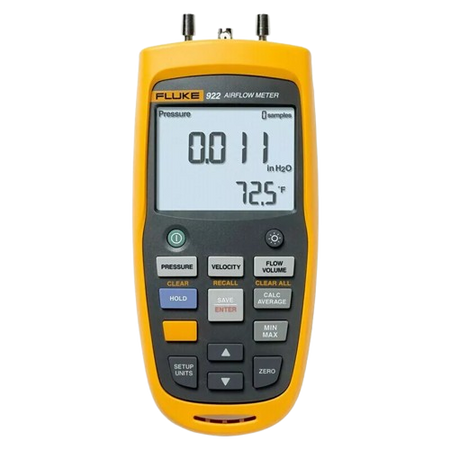

Fluke 922 was designed and built for how (and where) you do your job, with performance, ruggedness and ease of use, setting the Fluke 922 apart from the competition.
The bright white display, ruggedized holster, wrist strap and TPAK accessories let you take the Fluke 922 into less than ideal environments. The color-coded hoses help you keep track of where your readings are coming from. The simple, intuitive interface means you can measure pressure, velocity, or airflow at the push of a button. The Fluke 922 helps you analyze airflow. Easily.
Features
- Measure pressure drops to access key HVAC equipment to drive peak performance and extend equipment life.
- Match ventilation to occupant loads.
- Monitor indoor vs. outdoor pressure relationships and manage the building envelope.
- Promote indoor comfort and quality.

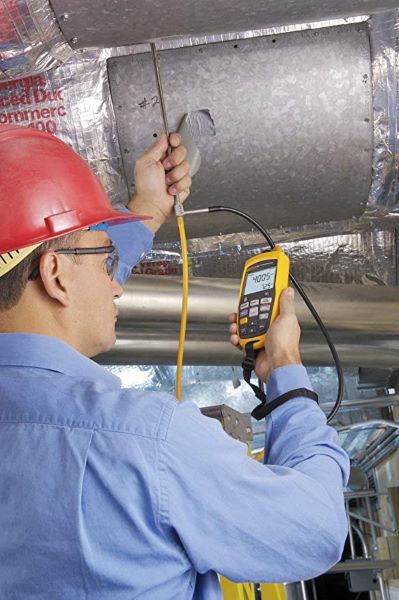

- Perform duct traversals for accurate airflow readings.
- Hang you meter almost anywhere with the ToolPak magnetic strip and strap.
Specification
| Specification | Value |
|---|---|
| Air Pressure | |
| Range | ± 4000 Pascals |
| Resolution | 1 Pascal |
| Accuracy | ± 1 % + 1 Pascal |
| Additional Ranges | ± 16 in H2O / 0.001 in H2O / ± 1 % + 0.01 in H2O |
| ± 400 mm H2O / 0.1 mm H2O / ± 1 % + 0.1 mm H2O | |
| ± 40 mbar / 0.01 mbar / ± 1 % + 0.01 mbar | |
| ± 0.6 PSI / 0.0001 PSI / ± 1 % + 0.0001 PSI | |
| Air Velocity | |
| Range | 250 to 16,000 fpm |
| Resolution | 1 fpm |
| Accuracy | ± 2.5 % of reading at 2000 fpm (10.00 m/s) |
| Additional Range | 1 to 80 m/s / 0.001 m/s / ± 2.5 % of reading at 2000 fpm (10.00 m/s) |
| Air Flow (Volume) | |
| Range | 0 to 99,999 cfm / 1 cfm |
| 0 to 99,999 m³/hr / 1 m³/hr | |
| 0 to 99,999 l/s / 1 l/s | |
| Accuracy | Function of velocity and duct size |
| Temperature | |
| Range | 0 °C to 50 °C |
| Accuracy | ± 1 % + 2 °C / 0.1 °C |
| Additional Range | 32 °F to 122 °F / ± 1 % + 4 °F / 0.1 °F |
| IP Rating | IP40 |
| EMI, RFI, EMC | Meets requirements for EN61326-1 |
| Max Pressure at Each Port | 10 PSI |
| Data Storage Capacity | 99 readings |
| Power | Four AA batteries |
| Battery Life | 280 hours without backlight, 60 hours with backlight |
| Weight | 650 g |
| Dimensions | 175 x 77.5 x 41.9 mm |
