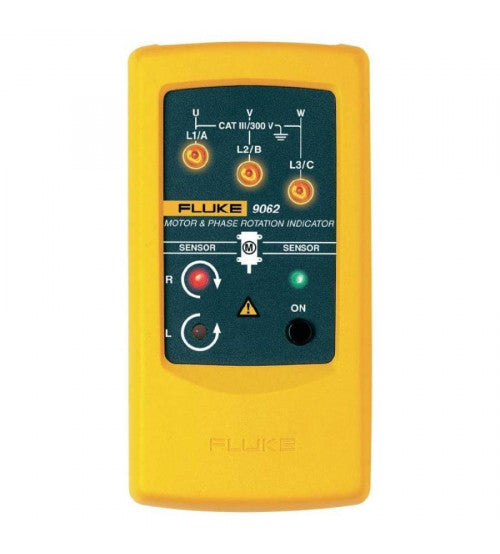

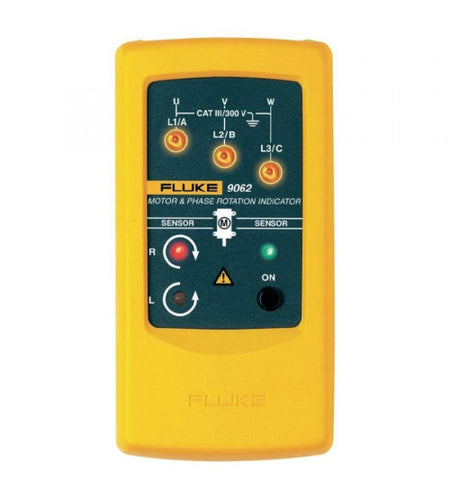

FLUKE Motor and Phase Rotation Indicator (FLUKE 9062)
Regular price
1,135.85 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The FLUKE 9062 Motor and Phase Rotation Indicator is a specialized tool designed for commercial and industrial environments. It provides rapid indication of three-phase rotation and motor rotation direction, making it essential for electrical maintenance and troubleshooting.
Features
- Three-Phase Indication: Quickly identifies the phase rotation of three-phase systems.
- Contact-Free Detection: Allows for the determination of motor rotation direction without direct contact, which is particularly useful when the motor shaft is not visible.
- Versatile Use: Suitable for both synchronous and asynchronous three-phase motors.
- Included Accessories: Comes with test leads, test probes, alligator clips, a 9 V battery, and a user manual.
Specifications
| Specification | Details |
|---|---|
| Voltage Range | Up to 400 V |
| Phase Display | 120-400 V AC |
| Frequency Range | 2-400 Hz |
| Operating Temperature | 0 °C to 40 °C |
| Operating Altitude | Up to 2000 m |
| Humidity | 15% to 80% (without condensation) |
| Dust/Water Resistance | IP 40 |
| Safety Rating | CAT III, 300 V |
| Size | 124 x 61 x 27 mm |
| Weight | 150 g |
| Warranty | 2 years |
