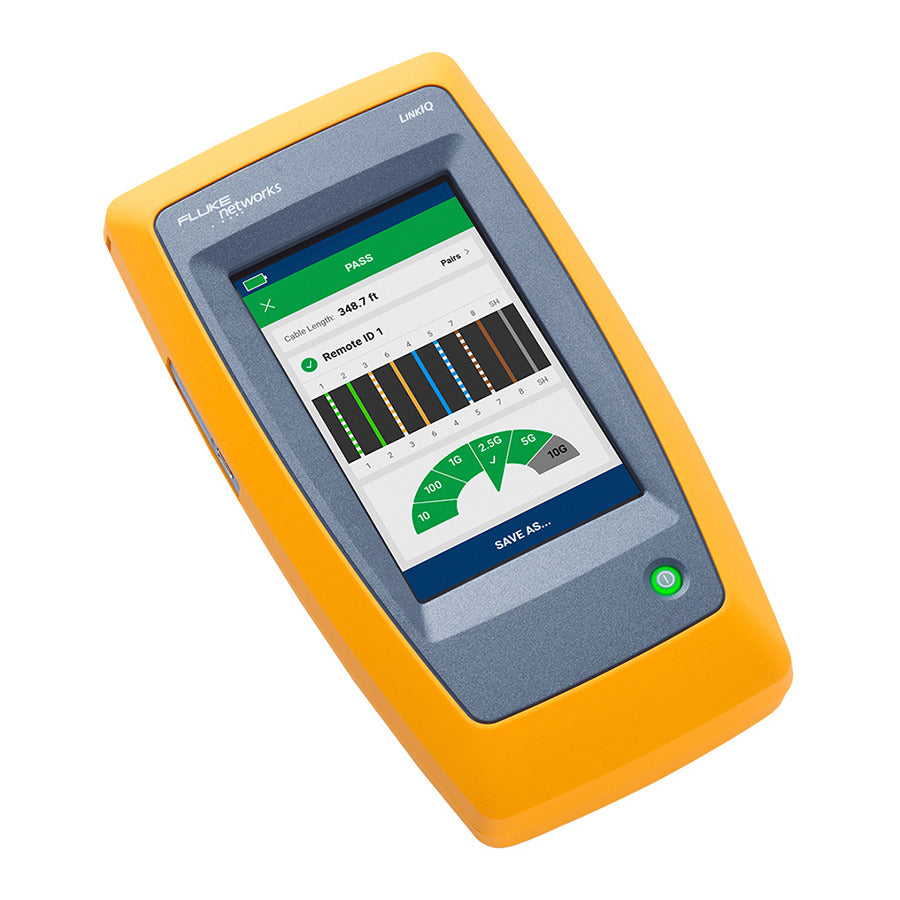

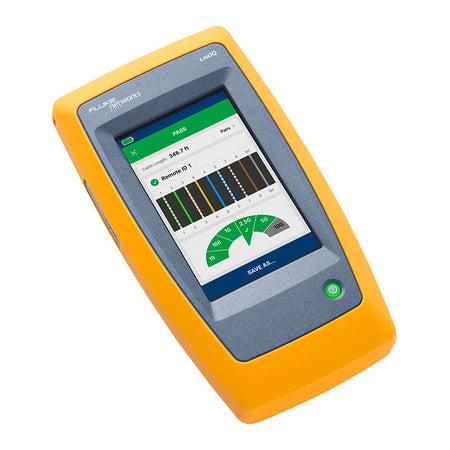

Fluke Networks LIQ-100-IE Industrial Ethernet Tester

Out of stock
SKU: LIQ-100-IE
Regular price 14,500.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The Fluke Networks LIQ-100-IE Industrial Ethernet Tester is a specialized tool designed for testing and validating Industrial Ethernet cabling systems. It is capable of diagnosing network connectivity issues and ensuring compliance with various Industrial Ethernet protocols.

Features
  • Performance Testing: Validates cable performance up to 10 Gb/s using frequency-based measurements.
  • Network Diagnostics: Provides detailed diagnostics including switch IP address, name, port/VLAN number, and data rates.
  • Power over Ethernet (PoE) Testing: Detects and tests PoE power under load up to Class 8 (90 W).
  • Cable Type Compatibility: Supports RJ45, M12X, M12D, and M8D terminated cables for various Industrial Ethernet protocols such as EtherNet/IP, PROFINET, and EtherCAT.
  • User-Friendly Interface: Features a large color touchscreen for easy navigation and operation.
  • LinkWare™ PC Integration: Manage results and generate reports through LinkWare™ PC software.
Specifications
Specification Details
Weight 1 lbs 6 oz (624g)
Battery Lithium-ion, 3.6 V, 6400 mAh
Operating Temperature 0°C to 45°C
Storage Temperature -10°C to +60°C
Display 800 x 480 pixels color capacitive multi-touch
Maximum Cable Length 305 m (1000 ft)
