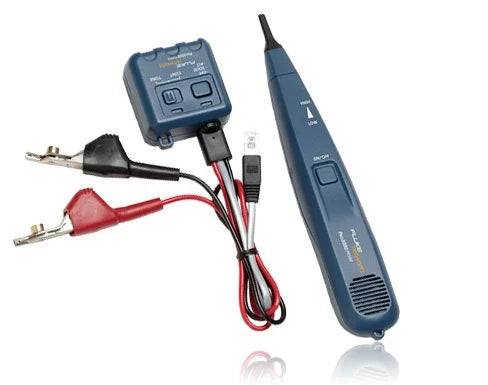

Fluke Networks Pro3000™ Tone Generator and Probe Kit
Regular price
450.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Fluke Networks Pro3000™ Tone Generator and Probe Kit is a comprehensive solution designed for efficient cable tracing and identification. This kit includes a tone generator and an unfiltered probe, making it ideal for technicians working with communication cabling.
Features
- SmartTone™ Technology: Provides five distinct tones for precise pair identification, allowing for accurate tracing of cables.
- Long Range Signal: Capable of sending a tone signal up to 10 miles (16 kilometers) on most cables.
- User-Friendly Design: The probe features a loud speaker for clear audio feedback, making it easier to trace cables through various materials.
- Versatile Connectivity: The tone generator includes angled bed-of-nails clips and an RJ-11 connector for easy access to telephone jacks.
- Continuity Testing: The kit allows for continuity testing and line polarity confirmation.
Specifications
Specification | Details |
---|---|
Solid Frequency | 1000 Hz nominal |
Alternating Frequency | 1000/1500 Hz nominal |
Over Voltage Protection | 60 Vdc in Toner/Polarity Mode |
Output Power in Tone Mode | 8 dbm into 600 ohms |
Output Voltage Level in Continuity Mode | 8 Vdc with fresh battery |
Battery | 9V alkaline |
Operating Temperature | -20°C to 60°C |
Dimensions (Toner) | 2.7 in. x 2.4 in. x 1.4 in. |
Dimensions (Probe) | 9.8 in. x 1.6 in. x 1.3 in. |
