Fluke TiS55+ Thermal Imagers
Regular price
13,950.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

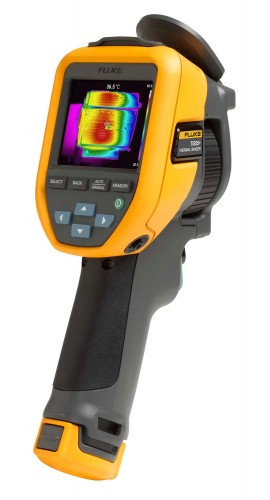

The Fluke TiS55+ Thermal Imager is a rugged and reliable thermal camera designed for professionals who need accurate thermal imaging for inspections and diagnostics. It features advanced imaging capabilities and built-in tools to enhance productivity and efficiency in various applications.
Features
- Infrared Resolution: 256 x 192 pixels, providing clear thermal images.
- Temperature Measurement Range: Capable of measuring temperatures from -20 °C to 550 °C (-4 °F to 1022 °F).
- Durability: Engineered to withstand a 2-meter drop and has an IP54 rating for water and dust resistance.
- User-Friendly Interface: 3.5-inch touchscreen display for easy navigation and image review.
- IR-Fusion Technology: Combines visible light and infrared images for better context and analysis.
- Voice Annotation: Allows users to record audio notes directly associated with thermal images.
- Asset Tagging: Automatically organizes thermal images by scanning QR codes on assets.
Specifications
Specification | Details |
---|---|
Model | TiS55+ |
Infrared Resolution | 256 x 192 (49,152 pixels) |
Field of View | 28° x 20° |
Minimum Focus Distance | 0.15 m (6 inches) |
Thermal Sensitivity (NETD) | 40 mK |
Frame Rate | 9 Hz or 27 Hz |
Battery Life | ≥ 3.5 hours continuous without WiFi |
Weight | 0.885 kg (1.95 lbs) |
Enclosure Rating | IP54 |
Warranty | Two years (standard) |
