Fluke TL76 2mm/4mm Test Lead Set

Out of stock
SKU: TL76
Regular price 350.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

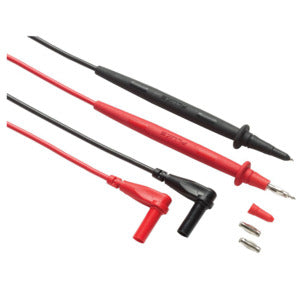

The Fluke TL76 2mm/4mm Test Lead Set is designed for versatility and safety in electrical testing. This set includes high-quality silicone test leads that are suitable for a variety of applications, including probing closely spaced leads.

Features
  • Removable IC Caps: The insulated IC caps allow for probing on closely spaced leads while ensuring compliance with GS38 standards.
  • Voltage and Current Ratings: Rated for CAT II 1000 V and 10 A, and CAT III 1000 V, CAT IV 600 V only with protective cap.
  • Length and Design: The set includes one pair of 1.4-meter long silicone test leads with right-angle shrouded banana plugs.
  • Lantern Tip: The removable lantern tip is designed for use with European wall sockets (4 mm Ø) and can be removed for easy access to terminal blocks (2 mm Ø).
Specifications
Specification Details
Model TL76
Length 1.4 meters
Connector Type Right angle shrouded banana plugs
Voltage Rating CAT II 1000 V, CAT III 1000 V, CAT IV 600 V (with cap)
Current Rating 10 A
Downloads
