HASTING SHOTGUN FIXED EXT ROD 8108-1
Regular price
2,200.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

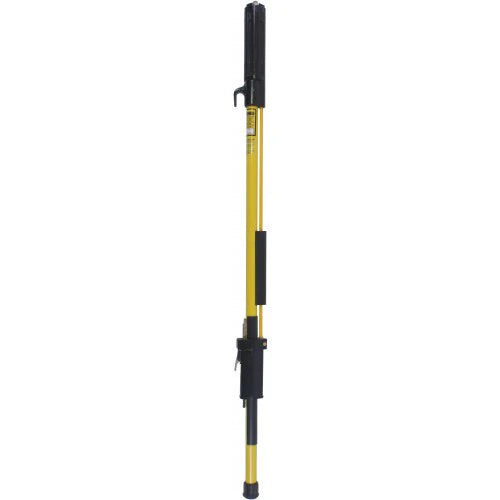

The Hastings Shotgun Fixed Extension Rod 8108-1 is a specialized tool designed for utility professionals to safely install hot-line and grounding clamps. This tool features a fixed length and an external operating rod, making it ideal for various overhead and underground service applications.
Features
- Length: The rod measures 8 feet 6 inches (approximately 2.6 meters), providing adequate reach for high-voltage tasks.
- External Operating Rod: The design incorporates an external operating rod, allowing for easy control and operation.
- Insulated Design: All insulated parts, including the operating rod, are located outside the main pole, facilitating easy cleaning and maintenance.
- Weight: The tool weighs approximately 35 lbs, making it manageable for field use.
- Dielectric Testing: Each hot stick undergoes dielectric testing with an electrical gradient of 100kV per foot, ensuring compliance with industry safety standards.
Specifications
| Specification | Details |
|---|---|
| Model No | 8108-1 |
| Length | 8 feet 6 inches (approximately 2.6 meters) |
| Weight | 35 lbs (approximately 15.88 kg) |
| Operating Mechanism | External operating rod |
| Dielectric Rating | 100kV per foot (tested for safety) |
