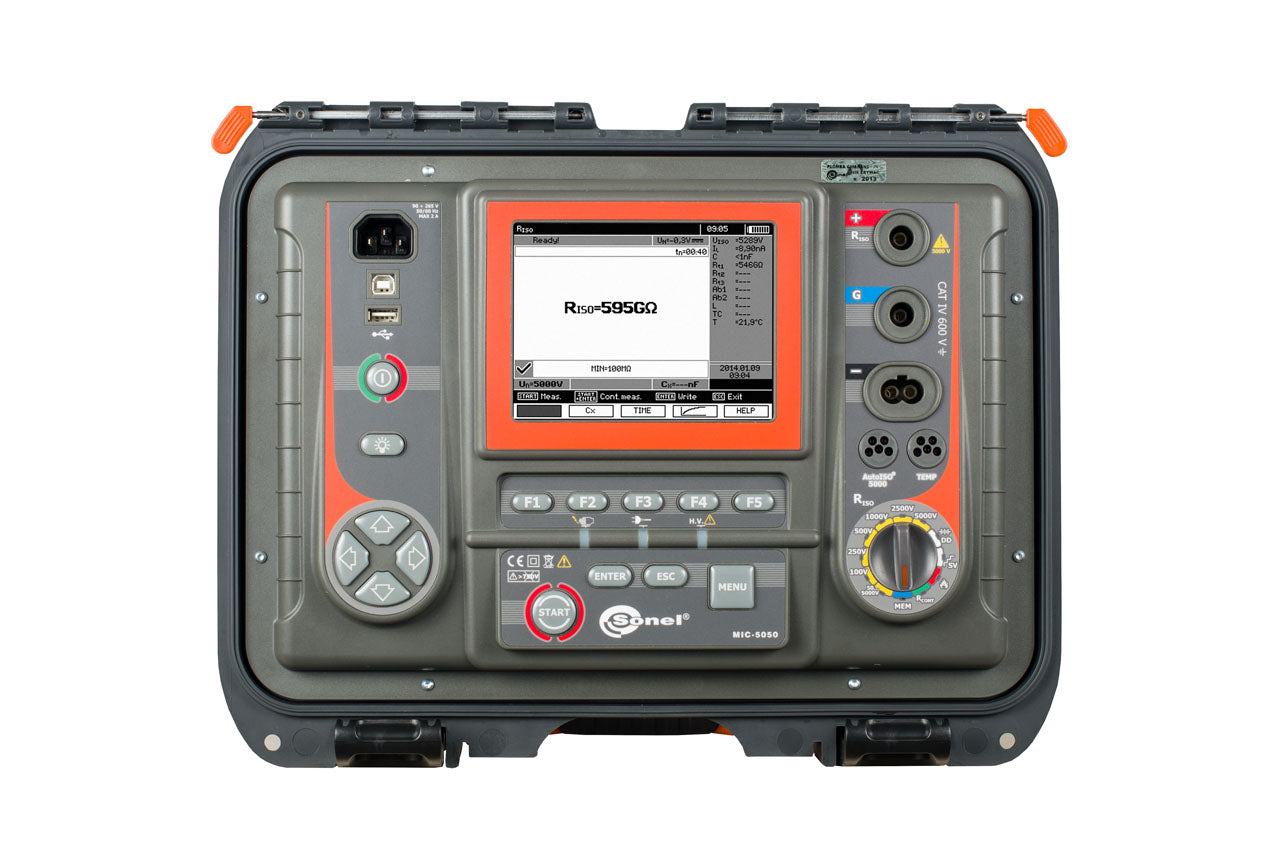

Insulation Resistance Meter MIC-5050 5KV
Regular price
10,000.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MIC-5050 Insulation Resistance Meter is a high-performance device designed for measuring insulation resistance in electrical systems. It is capable of testing insulation resistance up to 20 TΩ and is particularly useful for ensuring the safety and reliability of electrical installations.
Features
- Measurement Voltage: Adjustable from 50V to 5000V, with specific steps for different ranges (e.g., 50…1000V in 10V steps, 1…10kV in 25V steps).
- Continuous Monitoring: Provides continuous indication of measured insulation resistance or leakage current.
- Automatic Discharge: Automatically discharges the capacitance voltage of the measured object after testing.
- Test Time Settings: Adjustable measuring time up to 99 minutes and 59 seconds, with T1, T2, and T3 test times for absorption coefficient measurements.
- Polarization Index (PI): Measures PI, absorption coefficients (Ab1, Ab2), and dielectric absorption ratio (DAR).
- Multi-Core Cable Testing: Can perform automatic measurements on multi-core cables with the optional AutoISO-5000 adapter.
- Digital Filters: Equipped with digital filters to ensure stable measurements in environments with strong electromagnetic interference.
- Data Analysis: Features a graphical display that shows waveforms of insulation resistance, voltage, and current over time, allowing for detailed analysis of insulation conditions.
Specifications
| Specification | Details |
|---|---|
| Model No | MIC-5050 |
| Insulation Resistance Range | Up to 20 TΩ |
| Measurement Voltage | 50V to 5000V |
| Test Current | 1.2 mA, 3 mA, or 6 mA |
| Temperature Measurement | Optional probe ST-1 |
| Display | Graphical LCD |
| Dimensions | Not specified |
| Weight | Not specified |
| Power Supply | Not specified |
