Mitutoyo 570-314 HDS Digimatic Height Gage

Out of stock
SKU: 570-314
Regular price 7,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

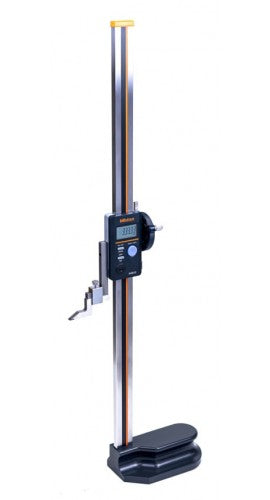

The Mitutoyo 570-314 HDS Digimatic Height Gage is a precision measuring instrument designed for accurate height measurements in various industrial applications. It combines advanced technology with user-friendly features, making it an essential tool for quality control and manufacturing processes.

Features
  • Measurement Range: 0 to 24 inches (0 to 600 mm).
  • Resolution: 0.0005 inches (0.01 mm) for high precision.
  • Accuracy: Maximum permissible error of ±0.002 inches (±0.05 mm).
  • Display: Large LCD for easy reading of measurements.
  • Drive Method: Manual slider-feed wheel for smooth operation.
  • Data Output: DIGIMATIC output for seamless data transfer.
  • Battery Life: Approximately 20,000 hours of continuous use.
Specifications
Specification Details
Model No 570-314
Measurement Range 0 to 24 inches (0 to 600 mm)
Resolution 0.0005 inches (0.01 mm)
Maximum Permissible Error ±0.002 inches (±0.05 mm)
Display LCD
Drive Method Slider-feed wheel (manual)
Data Output DIGIMATIC d1
Battery Life Approximately 20,000 hours
Dimensions 7.09 x 4.72 x 32.56 inches (180 x 120 x 827 mm)
Weight 14.1 lbs (6.4 kg)
