Portable Appliance Tester PAT-95
Regular price
5,000.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

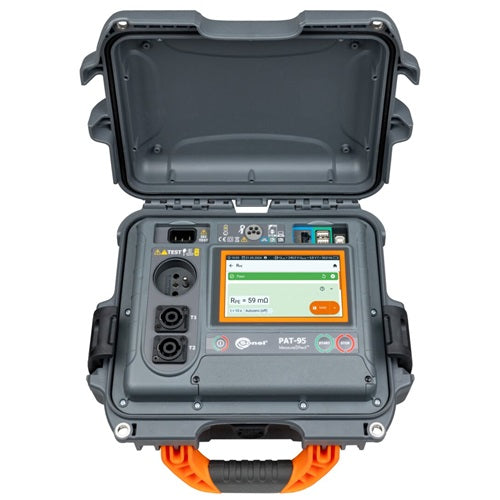

The Portable Appliance Tester PAT-95 is a sophisticated device designed for testing the safety of electrical appliances. It is particularly useful for ensuring compliance with safety standards in various environments, including industrial and commercial settings. The PAT-95 allows users to measure critical parameters that impact the safe use of electrical equipment, such as insulation resistance, continuity of connections, and leakage currents.
Features
- Comprehensive Testing: Measures insulation resistance, continuity of protective conductors, leakage currents, and performs RCD (Residual Current Device) testing.
- User-Friendly Interface: Equipped with a touch screen and an automatic procedure wizard for quick and efficient testing.
- Data Management: Supports data storage and management through the Sonel MeasureEffect™ platform, allowing for easy record-keeping and analysis.
- Label Printing: Compatible with a label printer and QR scanner for efficient documentation and identification of tested devices.
- Durable Design: Features a compact and robust housing to protect the instrument during measurements and transport.
- Memory Structure: Organizes data in a tree structure with folders for easy access to device information, measurement locations, and customer data.
Specifications
| Specification | Details |
|---|---|
| Model No | PAT-95 |
| Insulation Resistance Measurement | Up to 2000 MΩ |
| Continuity Measurement | Up to 20 A |
| Leakage Current Measurement | Up to 30 mA |
| RCD Testing | 30 mA, 100 mA, 300 mA |
| Display | Touch screen |
| Power Supply | Rechargeable battery / Mains |
| Dimensions | Compact design |
| Weight | Approx. 1.2 kg |
