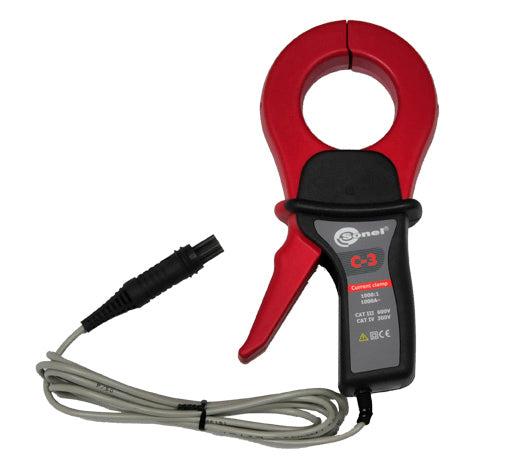

The SONAL Clamp Meter C-3 is a versatile and reliable tool designed for measuring both AC and DC currents up to 400A. It is ideal for electricians and technicians who require accurate measurements for troubleshooting and maintenance in various electrical applications.
Features
-
Current Measurement: Measures AC and DC current up to 400A.
-
Voltage Measurement: Capable of measuring AC and DC voltage up to 600V.
-
Resistance Measurement: Measures resistance up to 40 MΩ.
-
Capacitance Measurement: Can measure capacitance up to 4000 µF.
-
Frequency Measurement: Measures frequency from 10 Hz to 60 kHz.
-
Temperature Measurement: Measures temperature from -40°C to 1000°C using a K-type thermocouple.
-
Display: Features a high-visibility reverse contrast LCD for improved readability in various lighting conditions.
-
Safety Rating: Rated CAT III 600V, ensuring safe operation in residential and light industrial environments.
-
Durability: Built to withstand a drop from 6.6 feet (2 meters) and includes a low battery indicator.
Specifications
| Specification |
Details |
| Model No |
C-3 |
| AC/DC Current Measurement |
Up to 400A |
| AC/DC Voltage Measurement |
Up to 600V |
| Resistance Measurement |
Up to 40 MΩ |
| Capacitance Measurement |
Up to 4000 µF |
| Frequency Measurement |
10 Hz to 60 kHz |
| Temperature Measurement |
-40°C to 1000°C |
| Display |
4000 Count Reverse Contrast LCD |
| Safety Rating |
CAT III 600V |
| Dimensions |
8.45 x 3.5 x 1.5 inches |
| Weight |
11 oz (314 g) |
