SONEL CMP-1015-PV Professional Clamp Meter for PV 1500V
Regular price
1,600.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

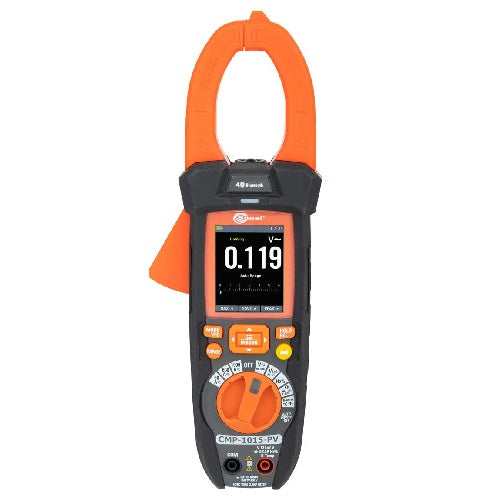

The SONEL CMP-1015-PV is a professional clamp meter specifically designed for measuring DC current and voltage in photovoltaic (PV) installations. It is capable of handling voltages up to 1500V, making it suitable for various solar energy applications.
Features
- High Brightness Display: The meter features a high-brightness display that allows for easy reading in bright sunlight.
- Multifunctional Measurements: In addition to basic measurements, it includes a recorder with graphs and special functions such as inrush current measurement, AC and DC voltage components, and low-impedance voltage measurement.
- Robust Design: The device is built to withstand tough conditions, featuring a rubber housing that protects against accidental damage.
- Wireless Communication: It supports Bluetooth for transferring measurement data to the Sonel Multimeter Mobile application, allowing users to record, store, and share results easily.
Specifications
Specification | Details |
---|---|
AC Current Measurement | Up to 1000 A |
DC Current Measurement | Up to 1000 A |
AC Voltage Measurement | Up to 1000 V |
DC Voltage Measurement | Up to 1500 V |
Resistance Measurement | Up to 60.00 MΩ |
Frequency Measurement | Up to 10.00 MHz |
Temperature Measurement | -40.0 to +1000ºC |
