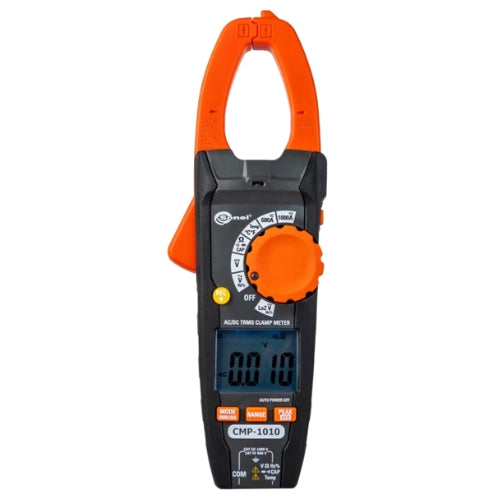

SONEL Digital Clamp-on Meter CMP-1010 (1000A)

Out of stock
SKU: CMP-1010
Regular price 1,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The SONEL CMP-1010 is a versatile digital clamp meter designed for measuring AC and DC current, as well as AC and DC voltage. It is particularly effective for precise measurements downstream of frequency converters, making it suitable for various electrical applications.

Features
  • Measurement Capabilities:
    • Measures AC and DC current up to 1000 A.
    • Measures AC and DC voltage up to 1000 V.
    • Low-impedance voltage measurement (Low Z) for accurate voltage readings.
  • Special Functions:
    • Inrush current measurement (INRUSH).
    • Maximum and minimum peak value recording (Peak MAX/Peak MIN).
    • Relative value measurement (REL).
  • User-Friendly Design:
    • Built-in flashlight for visibility in dark environments.
    • Compact and robust design for use in challenging conditions.
  • Safety Features:
    • Overload protection for both current and voltage measurements.
Specifications
Specification Details
AC Current Up to 1000 A
DC Current Up to 1000 A
AC Voltage Up to 1000 V
DC Voltage Up to 1000 V
Low Z Voltage Measurement Up to 300.0 V
Resistance Up to 60.00 MΩ
Frequency Up to 99.99 kHz
Capacitance Up to 100.0 mF
Temperature Measurement -20.0…+1000ºC
Continuity / Diode Test Yes / Yes
