SONEL Insulation Resistance Meter 5kV (MIC-5005)

Out of stock
SKU: MIC-5005
Regular price 8,500.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

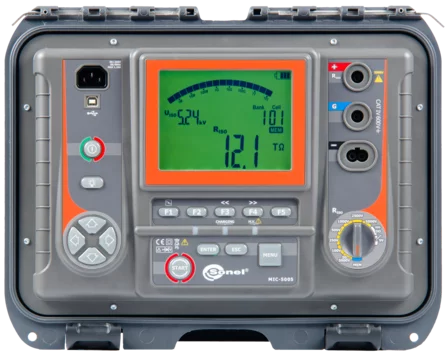

The SONEL MIC-5005 is a high-performance insulation resistance meter designed for measuring insulation resistance up to 15 TΩ. It is particularly suitable for testing electrical installations and equipment, ensuring safety and compliance with industry standards.

Features
  • Measurement Voltage Range: The device can measure insulation resistance at voltages of 50V, 100V, 250V, 500V, and 1000V, up to 5000V in steps of 10V or 25V.
  • High Measurement Current: It provides a maximum measurement current of 1.2 mA or 3 mA, allowing for quick charging of high-capacity objects.
  • Automatic Discharge: After each measurement, the meter automatically discharges the capacitance voltage of the measured object.
  • Digital Filters: Equipped with digital filters to enhance measurement accuracy in environments with strong electromagnetic interference.
  • Memory Storage: The device can store up to 990 measurement results (11,880 records) and supports wireless data transmission via Bluetooth or USB.
Specifications
Specification Details
Measurement Range 50 kΩ to 15 TΩ
Test Voltage 50V, 100V, 250V, 500V, 1000V, 2500V, 5000V
Test Current 1.2 mA or 3 mA
Display Backlit display
Memory 990 cells (11,880 records)
Power Supply Mains or battery pack
Compliance Meets EN 61557 standard
