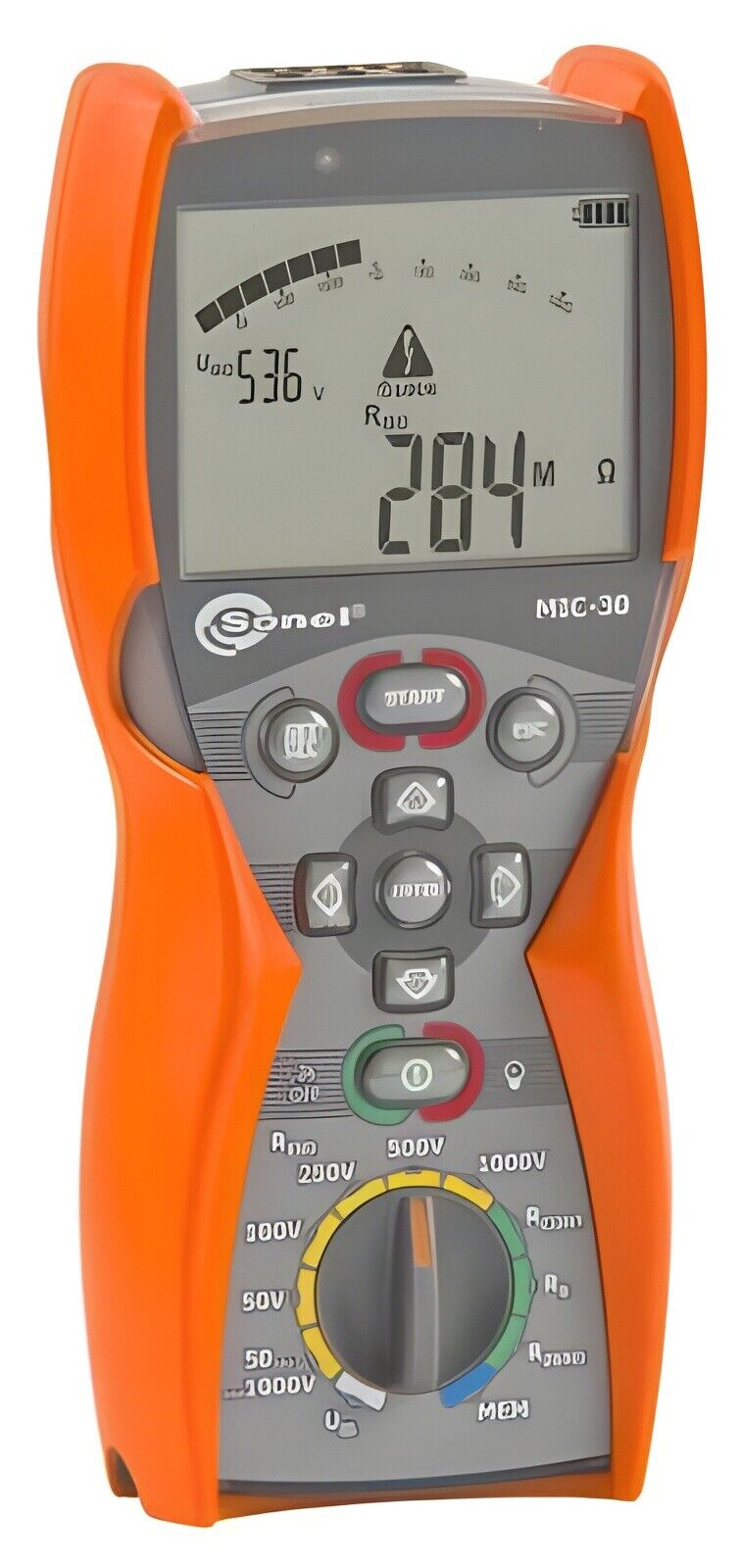

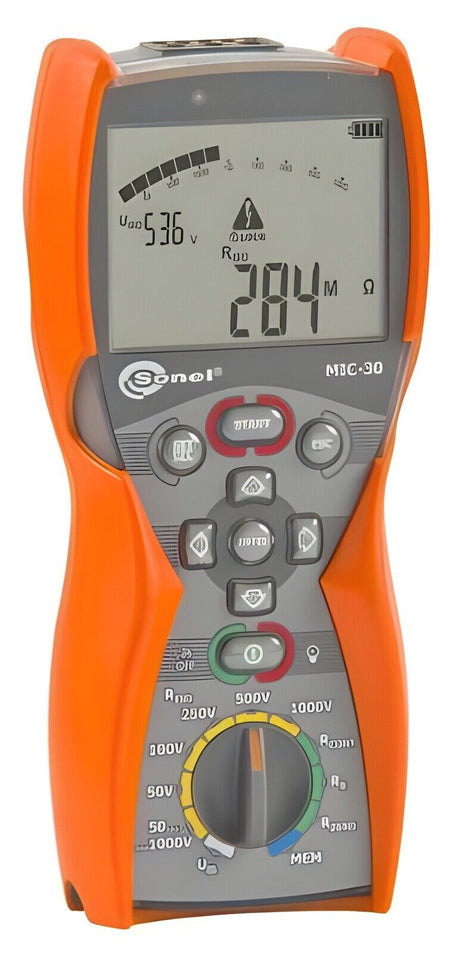

SONEL Insulation Resistance Meter MIC-30

Out of stock
SKU: MIC-30
Regular price 2,642.86 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The SONEL MIC-30 is a versatile insulation resistance meter designed for measuring insulation resistance in electrical installations. It is capable of testing insulation resistance up to 100 GΩ and offers a range of features suitable for both professional and industrial applications.

Features
  • Measuring Range:
    • Insulation resistance measurements from 50 kΩ to 100 GΩ depending on the test voltage.
    • Test voltages available: 50V, 100V, 250V, 500V, and 1000V.
  • Low-Voltage Measurement:
    • Continuity and resistance measurements according to EN 61557-4, ranging from 0.10 to 1999 Ω.
  • DC and AC Voltage Measurement:
    • Measures DC and AC voltage up to 600V.
  • Capacitance Measurement:
    • Capacitance measurement capabilities from 1 nF to 9.99 μF.
  • User-Friendly Interface:
    • Clear display for easy reading of results.
  • Compact and Lightweight:
    • Designed for portability, making it suitable for fieldwork.
Specifications
Specification Details
Insulation Resistance Range 50 kΩ to 100 GΩ
Test Voltage 50V, 100V, 250V, 500V, 1000V
Low-Voltage Measurement Range 0.10 to 1999 Ω
DC/AC Voltage Measurement Up to 600V
Capacitance Measurement Range 1 nF to 9.99 μF
Weight 0.6 kg (net)
