SONEL Insulation Tester 10kV (MIC-10K1)
Regular price
15,000.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

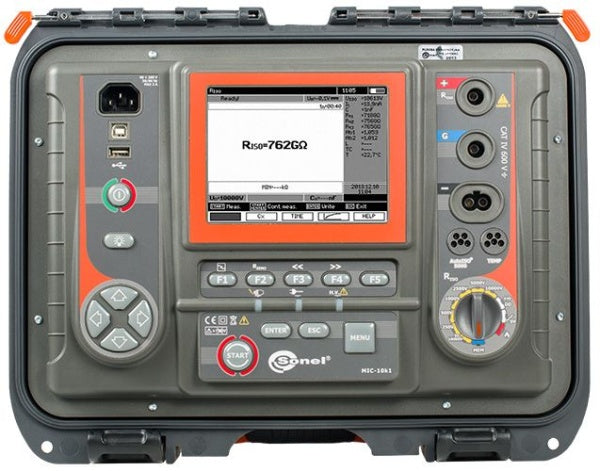

The SONEL MIC-10K1 is a high-performance insulation resistance meter designed for testing insulation resistance in electrical installations. It operates at a test voltage of 10 kV and is capable of measuring insulation resistance up to 40 TΩ, making it suitable for use in high-voltage environments such as substations.
Features
- High Voltage Testing: Capable of testing insulation resistance at 10 kV.
- Wide Measurement Range: Measures insulation resistance up to 40 TΩ.
- User-Friendly Interface: Features a large display and built-in memory for storing up to 990 measurement results.
- Leakage Current Measurement: Includes a third socket (GUARD) for verifying leakage current through faulty insulation.
- Digital Filters: Designed to operate effectively in environments with high electromagnetic interference, such as electrical substations.
- Temperature Measurement: Can measure the temperature of the tested object and indicate the absorption coefficient and polarization index.
Specifications
| Specification | Details |
|---|---|
| Test Voltage | 10 kV |
| Maximum Resistance Measurement | 40 TΩ |
| Current Output | 6 mA |
| Memory Capacity | 990 cells |
| Operating Environment | High electromagnetic disturbances |
| Display | Backlit graphical screen |
