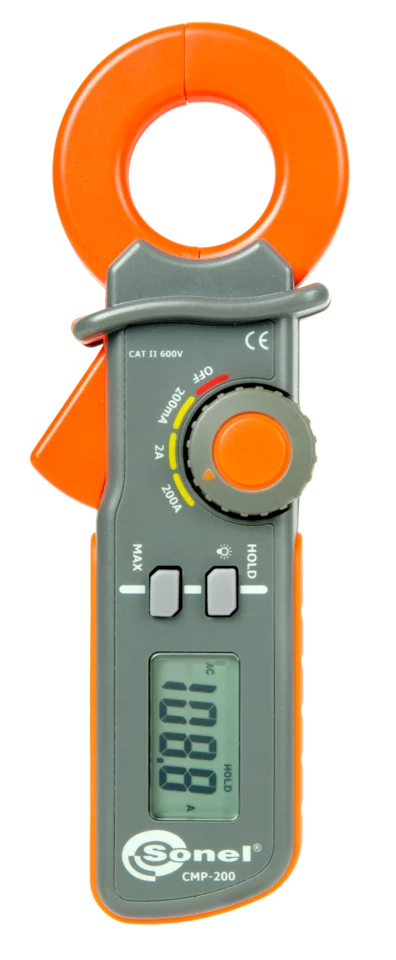

SONEL Leakage Clamp Meter CMP-200

Out of stock
SKU: CMP-200
Regular price 200.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The SONEL CMP-200 is a specialized clamp meter designed for measuring leakage currents in electrical systems. It is capable of measuring alternating currents up to 200 A, making it an essential tool for electricians and technicians working with electrical installations.

Features
  • Measurement Ranges:
    • 199.9 mA with a resolution of 0.1 mA
    • 1.999 A with a resolution of 0.001 A
    • 199.9 A with a resolution of 0.1 A
  • Accuracy:
    • ±(5% m.v. + 8 digits) for 199.9 mA
    • ±(5% m.v. + 10 digits) for 1.999 A
    • ±(2.5% m.v. + 10 digits) for 199.9 A
  • Compact Design: Lightweight and portable, making it suitable for use in tight spaces.
  • User-Friendly Interface: Features a large LCD display with backlighting for easy reading in low-light conditions.
  • Additional Functions: Includes a “HOLD” function to freeze measurements and a “MAX” function to capture peak values.
Specifications
Specification Details
Maximum Current 200 A
Measurement Resolution 0.1 mA, 0.001 A, 0.1 A
Accuracy ±(5% m.v. + 8/10 digits)
Clamp Diameter Approximately 30 mm
Operating Temperature 0...30°C
Weight 225 g
Dimensions 182 x 61 x 34 mm
