Sonel LKZ-2500 Cable and underground infrastructure locator

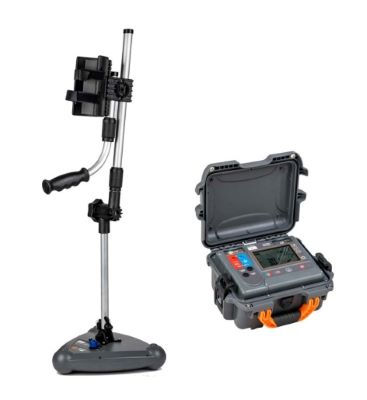

• The LKZ locator set consists of a LKN transmitter and LKD detector. It allows for location, identification and tracking of the route of objects buried in the ground. It allows to trace:
  • power cords and cables, control cables, telecommunications cables,
  • underground elements of lightning protection systems, cathodic protection systems,
  • water and sewage systems,
  • fuel transmission systems (pipelines, gas pipelines)
  • heating systems and pre-insulated pipes.


• The sets of LKZ series are an invaluable support in earthworks carried out for various industries, including energy, installation, construction, railway, telecommunications, water and sanitary, heating, geodetic and many others.


• LKN-2500 transmitter injects a locating signal into an underground object. LKD-2500 detector placed along the object traces this signal along the object. The information about position of the traced object is displayed on the Sonel LKZ Mobile app which is connected with the detector. Determination of the object’s route is possible based on observation of compass readings and the level of the detected signal.


• The system has the ability to trace cables and record routes via the mobile application. Such files can be exported and shared with other users – including those who do not have the LKN-2500 / LKD-2500 device. The system is capable of operating in passive mode (without the use of the LKN-2500 transmitter) and active mode (with the use of the LKN-2500 transmitter). The active mode allows to introduce the signal in three different methods:
  • galvanic – injects tracing signal into the object directly, through crocodile clips and test leads,
  • clamp – injects tracing signal into the object through an inductive clamp,
  • inductive – injects tracing signal into the object inductively, using the instrument’s internal antenna.

Specification

• LKN-2500 transmitter
  Ingress protection: IP67
  Power supply: Li-ion 7,2 V 9,8 Ah rechargeable battery
  Dimensions: 318 x 257 x 152 mm
  Weight: 3.4 kg
  Operating temperature: -10…+50°C
  Storage temperature: -20…+60°C
  Reference temperature: 23 ± 2°C


• LKD-2500 detector
  Ingress protection: IP65
  Power supply: Li-ion 3,6 V 6,7 Ah rechargeable battery
  Dimensions: 290 x 275 x 100 mm
  Weight: 1.2 kg
  Operating temperature: -10…+50°C
  Storage temperature: -20…+60°C
  Reference temperature: 23 ± 2°C
  Relative humidity: 20...90%


• Standard accessories:
  LKN-2500 transmitter
  LKD-2500 detector
  Control panel
  Test lead 5 m 1 kV (banana plugs) red / blue
  Crocodile clip 1 kV 20 A red / blue
  Ground probe 30 cm
  Battery charger Z-7
  Battery charger Z-32
  Carrying case XL-1
  Shoulder harness, design 1
  Long handle
  Holder for control panel
  Declaration of verification


• Optional accessories:
  N-1 transmitting clamp (fi 52 mm)
  N-4 transmitting clamp (fi 110 mm)
  N-5 transmitting clamp (fi 125 mm)
  Transmission wire, 50 m
  Transmission wire, 80 m
  Short handle
