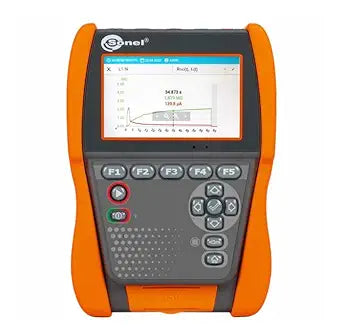

SONEL MIC-2511 Insulation Resistance Meter 2500V
Regular price
5,000.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The SONEL MIC-2511 is a high-performance insulation resistance meter designed for testing insulation resistance in electrical installations. It operates at a maximum voltage of 2500V, making it suitable for a wide range of applications, including industrial and commercial settings.
Features
- Measurement Range: The MIC-2511 can measure insulation resistance up to 2 TΩ, with various voltage settings including 10V, 25V, 50V, 100V, 250V, 500V, 1000V, and 2500V.
- Accuracy: The device offers an accuracy of ±(3% m.v. + 20 digits) across most measurement ranges.
- DC and AC Voltage Measurement: It can measure DC and AC voltage up to 1500V with an accuracy of ±(3% m.v. + 2 digits).
- Capacitance Measurement: Capacitance can be measured from 0 to 9.99 μF with an accuracy of ±(5% m.v. + 5 digits).
- Continuity Testing: The meter includes a continuity test function with a current of 200 mA.
- Temperature Measurement: It can measure temperature from -40.0 to 99.9°C with an accuracy of ±(3% m.v. + 8 digits).
Specifications
| Specification | Details |
|---|---|
| Insulation Resistance Measurement | Up to 2 TΩ |
| Voltage Measurement Range | 0…1500 V |
| Capacitance Measurement | 0...9.99 μF |
| Continuity Test Current | 200 mA |
| Temperature Measurement Range | -40.0…99.9°C |
| Weight | 1.1 kg (net), 2.8 kg (package) |
