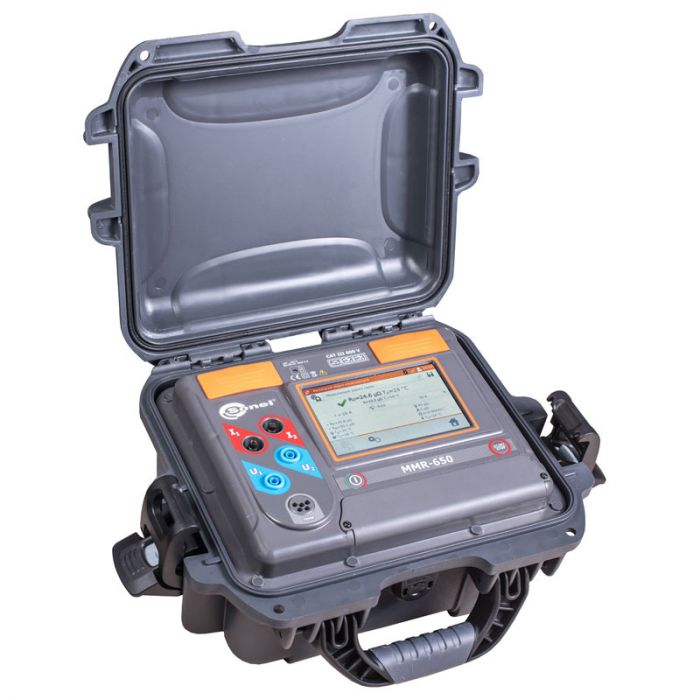

SONEL MMR-650 Winding Resistance and Low Resistance Meter

Out of stock
SKU: MMR-650
Regular price 16,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The SONEL MMR-650 is a high-performance winding resistance and low resistance meter designed for accurate measurement of small resistances in both resistive and inductive objects. It is particularly useful in power plants, maintenance companies, and the railway industry.

Features
  • Measurement Capabilities:
    • Measures winding resistance, including for amorphous-core transformers.
    • Measures very low resistance with high accuracy.
  • Advanced Functions:
    • Transformer core demagnetization function.
    • Automatic temperature compensation with a temperature probe.
    • Function to determine the temperature of a motor under load.
  • User-Friendly Interface:
    • Equipped with a color touchscreen display for easy interaction and readability.
  • Durable Design:
    • IP67 ingress protection rating, making it waterproof and dustproof.
Specifications
Specification Details
Measurement Range 0…999.9 μΩ to 2000.0…1999.9 Ω
Test Current 10 A, 1 A, 0.1 A, 10 mA, 1 mA
Accuracy ±(0.2% m.v. + 2 digits)
Operating Temperature -10°C to +50°C
Power Supply Rechargeable battery
Data Transmission LAN, USB, Wi-Fi
