SONEL PHASE SEQUENCE TESTER (TKF-12)

Out of stock
SKU: TKF-12
Regular price 564.30 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

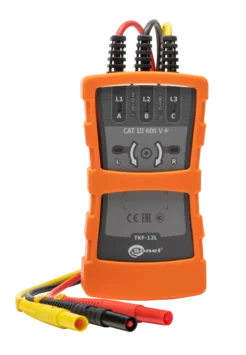

The SONEL TKF-12 is an ergonomic phase sequence tester designed for controlling 3-phase electrical installations. It is a reliable tool that helps electricians ensure proper phase connections and monitor voltage symmetry across phases.

Features
  • Phase Sequence Indication: The tester signals whether the phase connections are compatible or opposite.
  • Voltage Symmetry Display: It shows the symmetry of voltages in individual phases.
  • Wide Operating Range: Suitable for phase-to-phase voltages from 120V to 690V and frequencies from 10Hz to 70Hz.
  • Robust Design: Enclosed in a durable IP42 casing, ensuring high resistance to damage.
  • Temperature Range: Operates efficiently in temperatures from -10°C to +45°C.
  • Safety Standards: Complies with double insulation standards according to EN 61010-1, ensuring a high level of safety during testing.
Specifications
Specification Details
Voltage Range 120V to 690V AC
Frequency Range 10Hz to 70Hz
Operating Temperature -10°C to +45°C
Casing Protection IP42
Measurement Category CAT III 600 V
