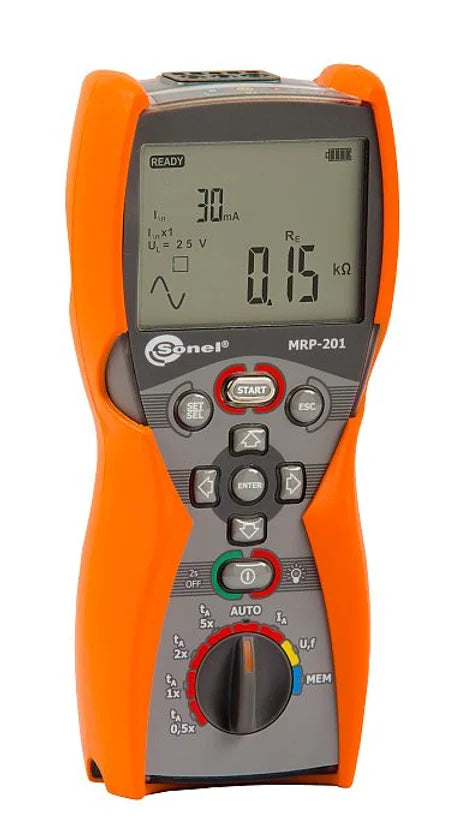

SONEL RCD Tester MRP-201

Out of stock
SKU: MRP-201
Regular price 3,500.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The SONEL MRP-201 is a specialized RCD (Residual Current Device) tester designed to measure various types of RCDs, including Type A, AC, and Type B. This device is essential for electricians and technicians to ensure the safety and functionality of electrical installations.

Features
  • Testing Capabilities: The MRP-201 can test RCD breakers for rated current values of IΔn = 10, 30, 100, 300, and 500 mA.
  • Simultaneous Measurements: It allows for simultaneous measurement of tripping current (IA) and disconnection time (tA) for currents of 0.5 IΔn, 1 IΔn, 2 IΔn, and 5 IΔn.
  • Touch Voltage and Earth Resistance Measurement: The device can measure touch voltage (UB) and earth resistance (RE) without tripping the RCD.
  • Auto RCD Test Function: It features an automatic RCD test function for ease of use.
  • Memory Storage: The built-in memory can store up to 990 measurement results.
  • Wireless Communication: It includes a wireless radio communication interface for data transfer.
  • Safety Standards: The device complies with safety standards, including double insulation and IP67 protection class.
Specifications
Specification Details
Rated Current Values IΔn = 10, 30, 100, 300, 500 mA
AC Voltage Measuring Range 0...500 V
Measurement Category CAT IV 300 V (III 600 V)
Protection Class IP67
Dimensions 220 x 98 x 58 mm
