SPARTNA SPR-931 Portable Vibration Meter with InfraRed Thermometer
Regular price
2,850.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

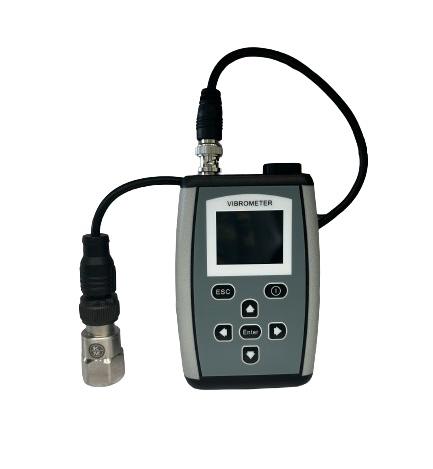

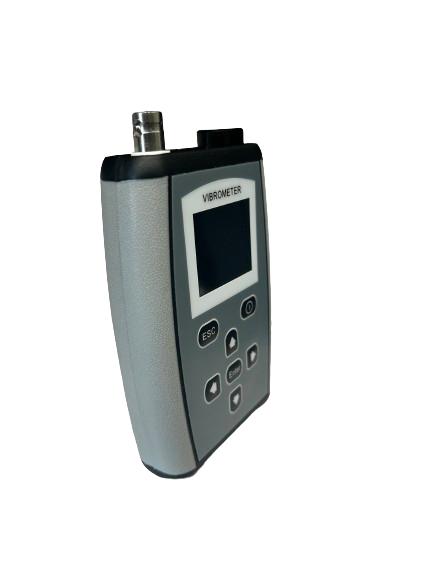

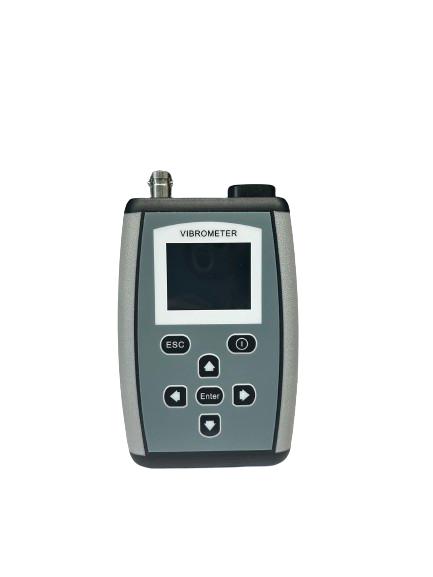

SPR-931 is a handheld machine condition detection instrumen t based
on the latest microprocessor design. It has vibration measurement,
infrared temperature measurement and intelligent color alarm functions.
The instrument is simple and easy to use, suitable for on-site machine
operation and maintenance inspector to monitor machine condition,
detect problems in time, and ensure reliable operation of machines.
Features
- SPR-931 is a very advanced mechanical troubleshooting tool that
also has vibration measurement, infrarred temperature measurement
& intelligent alam functions.,built in ISO10816-3 international vibration
level standard,and high-resolution color display.
- It is designed with superior features that bring about great benefits
and efficiency in both the industrial and domestic spheres.
- One of the primary advantages of the SPR - 931 model is its
outstanding vibration reduction capacity. This feature enables it to
eliminate mechanical vibrations, which is critical in preventing
mechanical failure, fatigue, and reducing noise levels.
- The SPR-931 model is suitable for various applications, including
industrial machines, electrical equipment, and vehicles.
- Can measure the effective value of vibration velocity (mm/s RMS),
single peak acceleration (g P), peak-to-peak displacement (um P-P)
and high-frequency acceleration value (BG Peak).
- High-resolution color display.

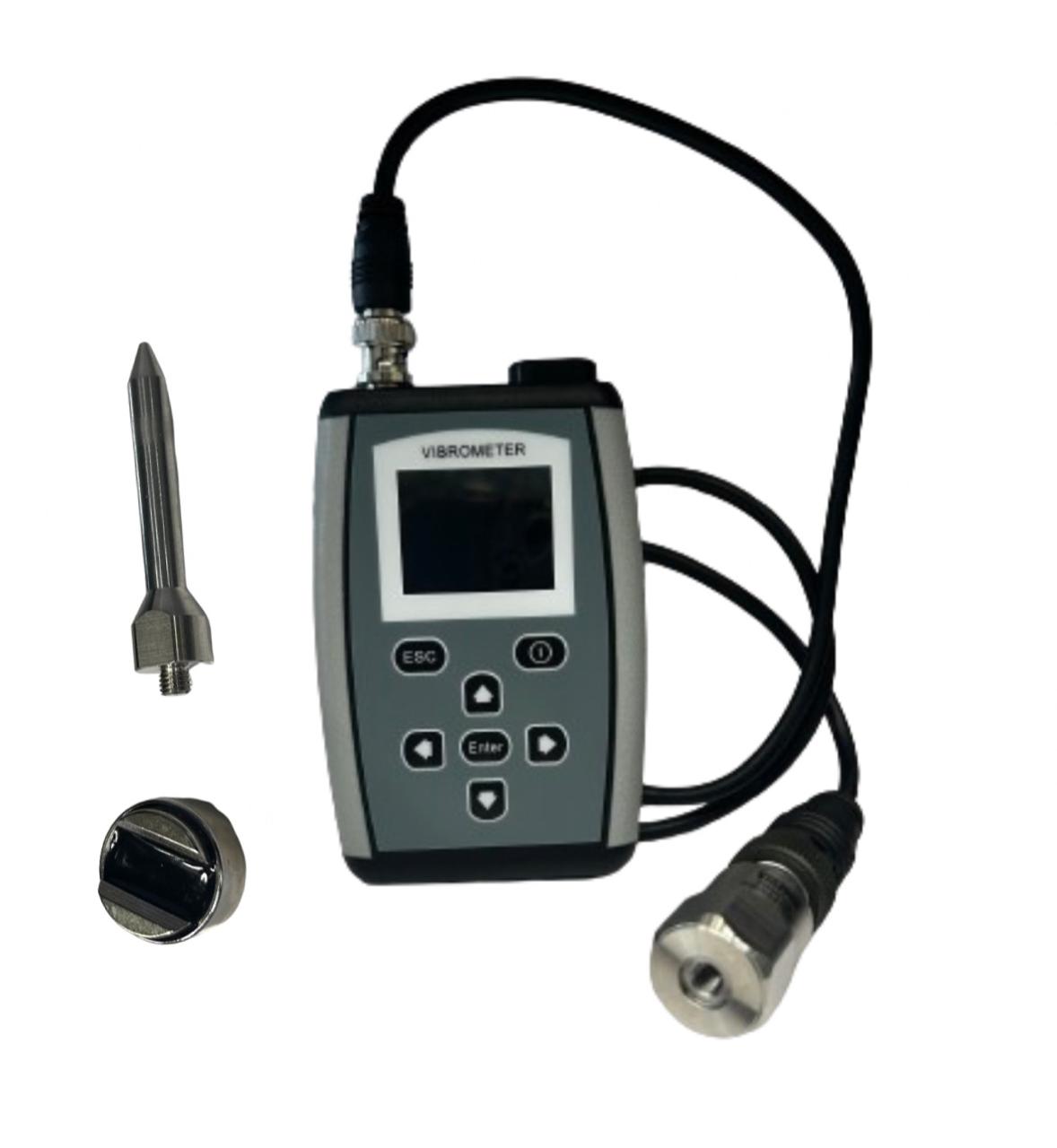

- Accessories:
Meter (built-in lithium battery
Acceleration sensor (with 80cm length cable)
Magnetic holders for sensors
Probe
Battery charger
Operation manual
Instrument case
Specification
- Velocity Range:
0-200mm/s RMS
Frequency: 10Hz-1kHz - Range:
0-2000μm Peak-Peak
Frequency: 10Hz-1kHz D - Acceleration :
Range: 0-20g Peak
Frequency: 10Hz-1kHz
- High Frequency Acceleration:
Range: 0-20g Peak
Frequency: 1kHz-12kHz
- Accuracy : ±5%
- Sensitivity : 100mV/g
- IR Temperature : Range: -20～120 °C
Accuracy: ±2°C
Resolution: 1 °C
Distance to Target Ratio: 8:1
- Alarm Indication : Built-in ISO10816-3 machine
vibration standard evaluation
of vibration speed alarm state
- Display : TFT color display,128x160 pixels
- Operation Temperature : -10°C to +50°C
- Power : Lithium rechargeable battery, 3.7V 1600 mAh,
- Charger Recharge : time 3 hours;
Operating time >30 hours continuous
- Dimensions 115 x 75 x 25mm
- Weight 230g
