ZIEGLER RI-20 Digital Insulation Tester
Regular price
780.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

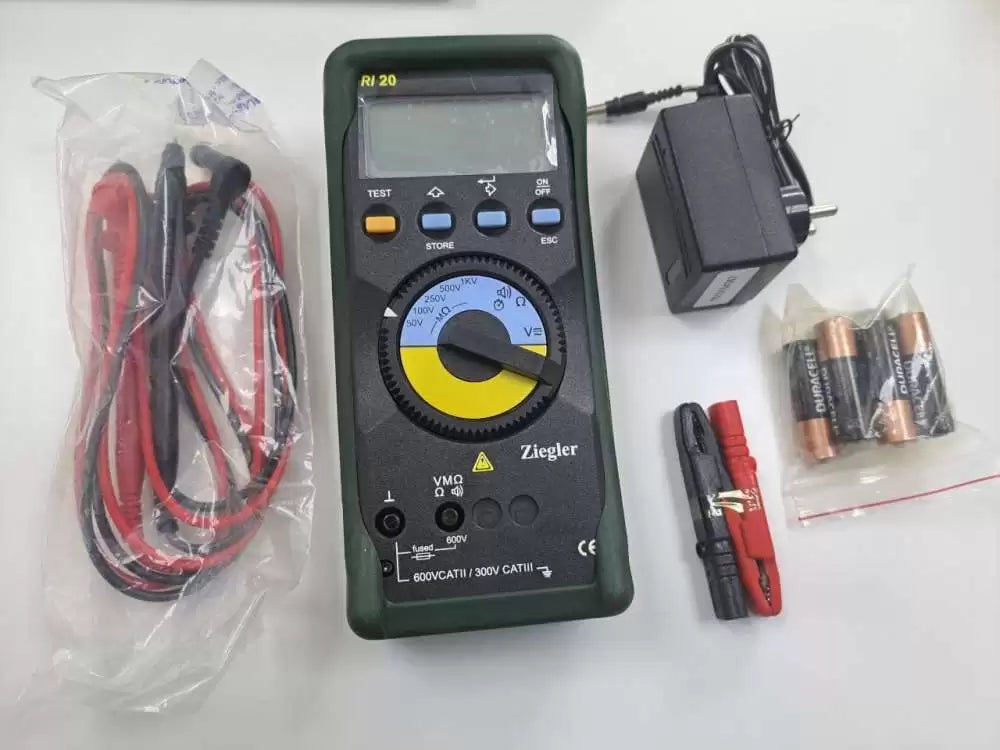

The ZIEGLER RI-20 is a high-precision digital insulation tester designed for measuring insulation resistance in electrical systems. It is suitable for a variety of applications in industrial, commercial, and residential settings.
Features
- Test Voltage: Up to 1000V for robust insulation testing.
- Measurement Range: Measures insulation resistance from 1 MΩ to 20 GΩ.
- Digital Display: Clear LCD for easy reading of measurements.
- Auto-Range Function: Automatically selects the appropriate measurement range.
- Compact and Portable: Lightweight design for easy transport and use.
Specifications
| Feature | Specification |
|---|---|
| Model | ZIEGLER RI-20 |
| Test Voltage | 1000V |
| Measurement Range | 1 MΩ to 20 GΩ |
| Display | Digital LCD |
| Battery Type | Rechargeable |
| Dimensions (H x W x D) | 200mm x 100mm x 50mm |
| Weight | 1.5 kg |
| Safety Features | Overload protection, safety warnings |
